HDZero Freestyle V2 Video Transmitter Kit (HDZ3132)

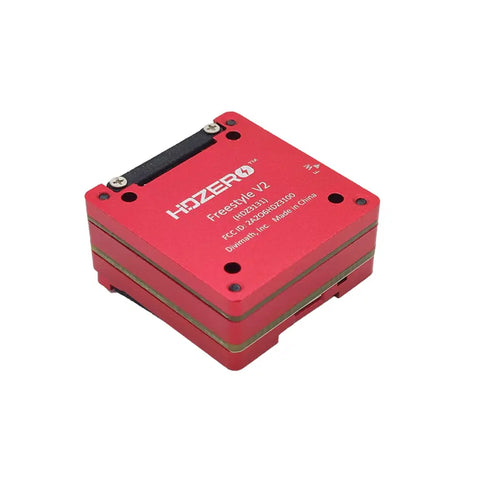

The HDZero Freestyle V2 VTX is the second generation of our 5.8GHz digital video transmitter, designed to fit most 3-5 inch HD drones. Its CNC case ensures protection for all sockets, offers durability, RF shielding, and improves signal integrity. The product features a wire harness for a solderless connection to power and MSP UART port, while the antenna and MIPI cable remain secure with the provided retention bar and screws.
Supported Video Modes
- 720p60
- 1080p30
- 540p60
- 540p90
Specifications
- Model: HDZero Freestyle V2 VTX
- Weight: 22.3g
- Dimensions: 29x30x14mm
- Operating Frequency: 5.725-5.850GHz
- Transmitter Power: 25mW, 200mW
- Mounting Pattern: 20x20mm M2 holes
- Antenna Interface: Secured U.FL
- Video Input: Secured MIPI
- SmartAudio: Yes
- MSP Canvas Mode: Yes
- Input Power: 7-25V
- Operating Temperature: 32˚F-104 ˚F (0˚-40˚C)
- Power Consumption: 6-15W
- The VTX is capable of maximum 1W RF output at R1 channel if unlocked with license or approval from the local authorities.

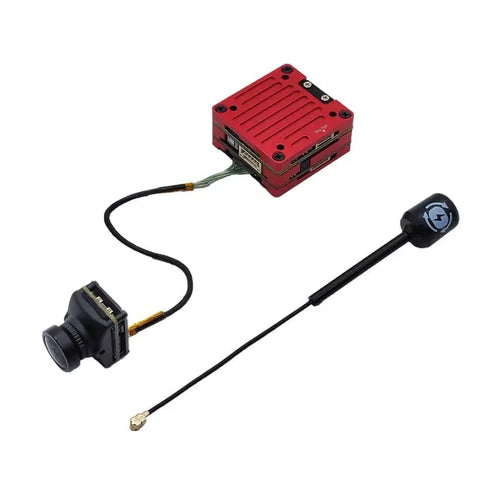

Includes
- 1x Freestyle V2 VTX
- 1x Nano 90 Camera (with 19 x 19 Mount)
- 1x HDZero RHCP antenna
- 1x 120mm Mipi Cable
- 1x Power Cable
- 1x SA Cable
- 1x Plastic bar for Mipi Cable with 3 x screws (M1.4 x 2mm).
- 1x Plastic bar for U.FL with 3 x screws (M1.4 x 8mm)
- 1x Double Sided Tape (29 x 30 x 1mm )
