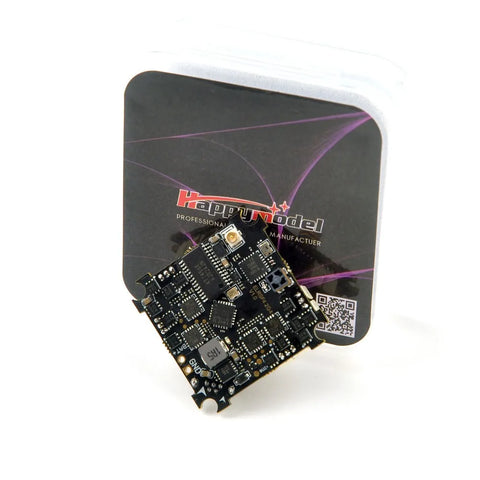

HappyModel ELRS F4 2G4 AIO 5IN1 Flight controller SPI 2.4GHz ELRS RX
The world’s first AIO 5in1 F4 flight controller with integrated SPI 2.4GHz ExpressLRS receiver has been launched. The flight controller integrates SPI controlled 2.4GHz ExpressLRS receiver, Dshot protocol 4-in-1 ESC, 5.8GHz 40ch video transmitter and Betaflight OSD. Ultra-small size and ultra-stable remote control range can improve the range of the original SPI receiver. And because the 2.4GHz ExpressLRS receiver is equipped with the SX1280 radio frequency chip with high sensitivity, high packet rate and low latency, this flight controller is the one that all Race/Freestyle pilots needed. It is suitable for use in Tiny whoop Race or Toothpick Freestyle, and can also be used in 1S ultra-lightweight Nano Long Range platform.
Specifications:
| Flight controller | MCU:STM32F411CEU6 (100MHZ, 512K FLASH) Sensor: ICM42688P Original whoop size compatible Power supply: 1S battery input (DC 2.9V-4.35V) Built-in 5A(each) Blheli_S 4in1 ESC Dshot600 ready Built-in Betaflight OSD(SPI Control) Built-in 5.8G VTX Built-in SPI ExpressLRS 2.4GHz receiverBuilt-in 5V 1A BECFlight controller firmware target: CRAZYBEEF4SX1280 |
| Onboard 4in1 ESC | MCU upgraded to EFM8BB21 Power supply: 1S LiPo/LiPo HVCurrent: 5A continuous peak 6A (3 seconds) Support BLHeliSuite programmable Factory firmware: O_H_5_REV16_8.HEX Default protocol: DSHOT600 |
| Onboard SPI ExpressLRS 2.4GHz Receiver | Packet Rate option: 25Hz/50Hz/150Hz/250Hz/500Hz RF Frequency: 2.4GHzAntenna : SMD antenna Telemetry output Power: <12dBmReceiver protocol: SPI ExpressLRSCould bind with Happymodel ES24TX , ES24TX Lite, ES24TX Slim and DIY 2.4GHz ELRS TX module(need to flash the same version ELRS firmware) |
| Onboard 5.8g VTX | Output power: 25mw~200mw switchable Frequency: 40CH Input voltage: 3.3V 5.5V Current consumption: 300mA(type) Frequency: 5.8GHz 5bands 40 channels(include Race band)Smartaudio ready |
| Onboard voltage and Amperage meters settings | Voltage meter scale setting 110 Amperage meter scale setting 1175 |
Bind procedure:
- Power the flight controller by connecting USB. Please make sure that the port driver of the flight controller is correctly installed on the computer, then open Betaflight Configurator(Latest version) to connect, enter to the “receiver” interface, and then click “Bind Receiver”, the red LED at the bottom of the flight controller will flash quickly, which means that the SPI ELRS receiver enters the bind mode. There is another way to make the receiver enter the bind mode: after connecting to the Betaflight configurator, move to the CLI interface and enter “bind_rx” in the command line.
- After correctly connecting the ES24TX or ES24TX Lite/Slim module or DIY 2.4G ELRS TX module to your Opentx radio transmitter, copy the latest version of ELRS.LUA file to the SD card in the remote controller. The directory is “SD Card/Scripts/tools”, Then run ELRS.LUA and upgrade the specified TX frimware through Wifi, and then click “bind” to link with the SPI ExpressLRS receiver. The Red LED will blinking slowly, this means the bind is successfully. Note: You need to adjust the Packet Rate to 500Hz from the ELRS interface of your radio controller before binding.
- After the binding is successful, please re-power for the radio transmitter and then the Red LED at the bottom of the flight controller will getting to be solid, and the telemetry can be received at the same time.
- The meaning of the LED status of the SPI receiver: the LED is getting to be solid, indicating that the bind is successful or the connection and communication is normal, the LED flashing quickly indicates that the receiver is in binding mode, and the LED flashing slowly indicates that the there is no signal received from the radio controller.
Firmware and diff document download link
Notes: Since Betaflight has not yet released the official firmware that could supports the SPI Expresslrs protocol, the current version is the Beta version(Target:CrazybeeF4SX1280). Betaflight will update to their official target soon. Please feel free to contact with us if you have any issues with this Beta version Firmware.
Please change the “PID loop frequency” to “4KHZ” , sometimes it would make the SPI receiver not working correct while the value is “8KHZ”
If find buzzer is not working , please go to CLI command and enter the following code
set beeper_inversion = ON
set beeper_od = OFF
save
More details and discussion on Github
