HappyModel Crux3 1S Toothpick 3 Inch Quad FPV Racing Drone

Rp 1.781.000,00
Save Rp 240.000

Quantity

Featured Products

TBS Crossfire Micro TX V2 Starter Set

Rp 1.781.000,00

TBS Crossfire Diversity Nano RX

Rp 770.000,00

Infinity 1400mAh 6S 150C 22.2V LiPo Battery XT60 [DG]

Rp 482.000,00

Matek M10Q-5883 GPS COMPASS Module

Rp 626.000,00

RadioMaster Bandit ExpressLRS 915MHz ELRS RF 1W Module TX

Rp 1.396.000,00 Rp 1.655.000,00

SUNLU ASA 3D Printer Filament 1.75mm 1KG

Rp 299.000,00 Rp 385.000,00

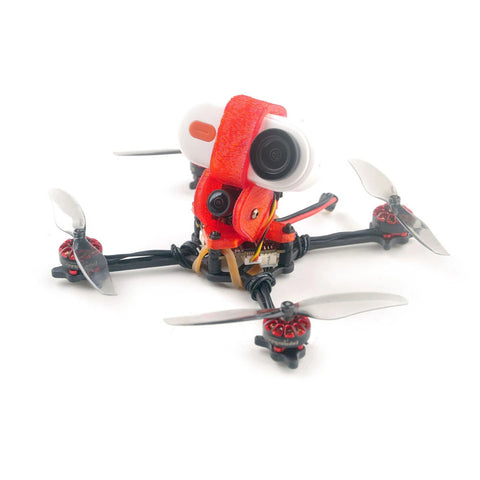

HappyModel Crux3 1S Toothpick 3 Inch Quad FPV Racing Drone BNF ELRS

*For ELRS V3 Radio Controller, please download Crux3 1S ELRS V3 firmware and CLI Dump file from here: Crux3 1S ELRS V3

Features:

40gram 1s brushless Toothpick drone
AIO Flight controller with ELRS Receiver and 5.8G VTX
CADDX ANT 1200TVL Camera
New 1202.5 KV11500 brushless motor
Compatible with CaddxFPV Peanut and Insta360 GO2 ( NOT Included)
Carrying Caddxfpv peanut Got 4.5 minutes flying time with 1s 650mah battery

Specifications：

Brand Name: Happymodel
Model: Crux3 1S ELRS
Item Name: 115mm F4 1S Toothpick FPV Racing Drone BNF
Wheelbase: 115mm
Size: 97mmx97mmx35mm (without propellers)
Weight: 40g(without battery)

Motor	Mode: EX1202.5 KV11500 Configu-ration:9N12P Stator Diamter:12mm Stator Length:2.5mm Shaft Diameter:Φ1.5mm Motor Dimension(Dia.Len):Φ14mm14.5mm Weight(g):4.4g No.of Cells(Lipo):1S
Propellers	Gemfan 75mm Center Thickness:5mm Prop Diameter:75mm Center Hole diameter:1.5mm Pitch:0.9in
Flight controller	MCU:STM32F411CEU6 (100MHZ, 512K FLASH) Sensor: MPU-6000(SPI connection) Original whoop size compatible Power supply: 1S battery input (DC 2.9V-4.35V) Built-in 5A(each) Blheli_S 4in1 ESC Dshot600 ready Built-in Betaflight OSD(SPI Control) Built-in 5.8G VTX Built-in SPI ExpressLRS 2.4GHz receiver Built-in 5V 1A BECFlight controller firmware target: CRAZYBEEF4SX1280
Onboard 4in1 ESC	MCU upgraded to EFM8BB21 Power supply: 1S LiPo/LiPo HV Current: 5A continuous peak 6A (3 seconds) Support BLHeliSuite programmable Factory firmware: O_H_5_REV16_7.HEX Default protocol: DSHOT300
Onboard SPI ExpressLRS 2.4GHz Receiver	Packet Rate option: 25Hz/50Hz/150Hz/250Hz/500Hz RF Frequency: 2.4GHz Antenna : SMD antenna Telemetry output Power: <12dBm Receiver protocol to flight controller: CRSF Could bind with All ExpressLRS 2.4GHz TX module , ExpressLRS firmware need 1.0.0 or latest
Onboard 5.8g VTX	Output power: 25mw~200mw switchable Frequency: 40CH Input voltage: 3.3V 5.5V Current consumption: 300mA(type) Frequency: 5.8GHz 5bands 40 channels With Race band Smartaudio ready
Caddx ANT 1200tvl camera	Image Sensor: 1/3" CMOS Sensor Horizontal Resolution: 1200 TVL TV System: NTSC or PAL IMAGE: 16:9 or 4:3 Synchronization: Internal Electronic Shutter: PAL: 1/50~100,000; NTSC: 1/60~100,000 S/N Ratio : >52dB (AGC OFF) Video Output: CVBS Lens: 1.8mm Min. Illumination: 0.001Lux@F1.2 Auto Gain Control: YES BLC: YES WDR: Global WDR DNR: 3D DNR Dimensions: 1414mm(with bracket to 1919mm) Wide Power Input: DC 3.7-18V Work Temperature: -20℃~+60℃ Weight: 2g (N.W.)
