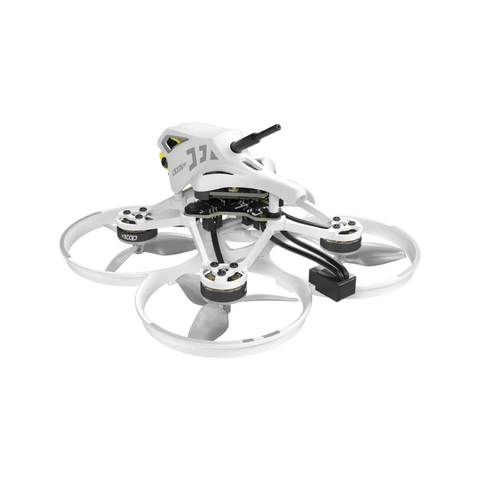

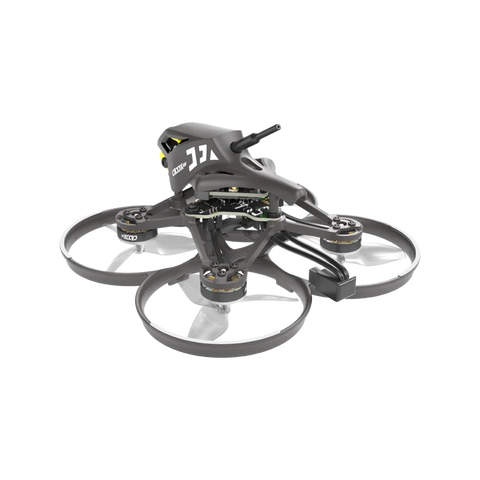

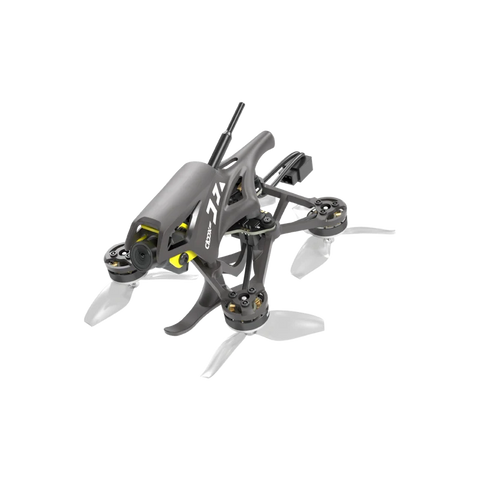

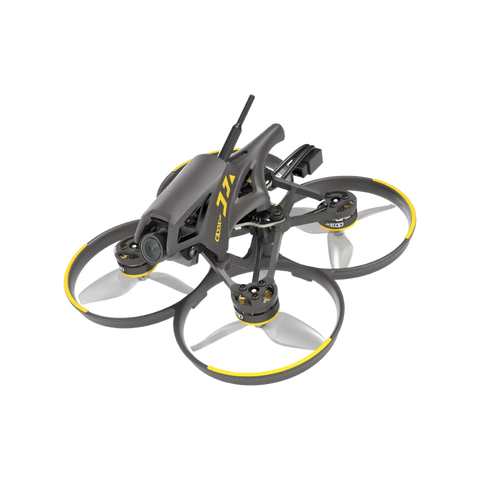

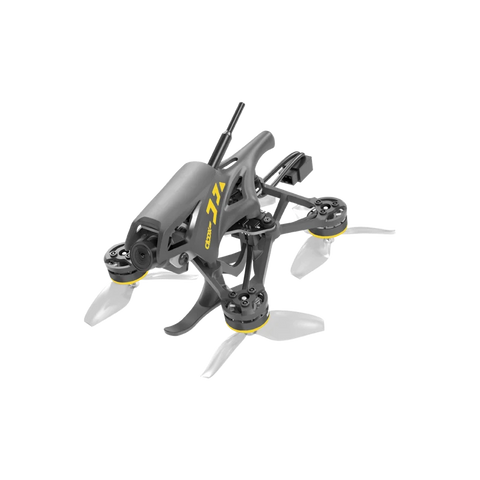

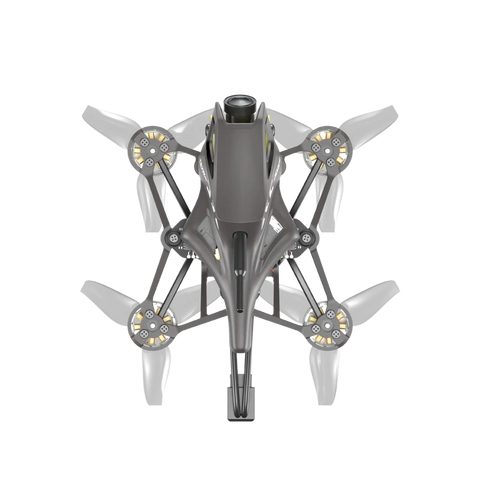

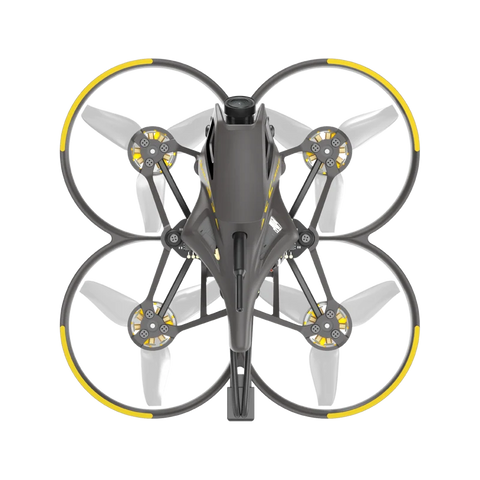

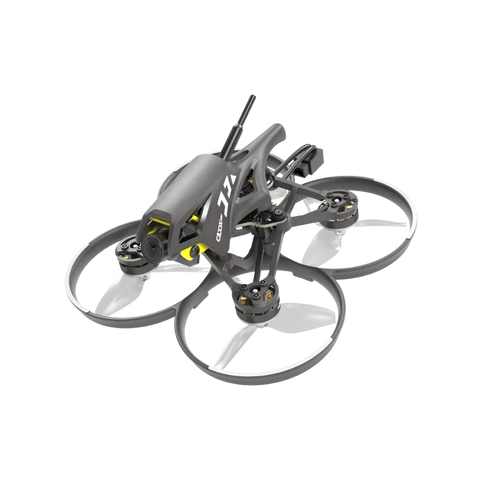

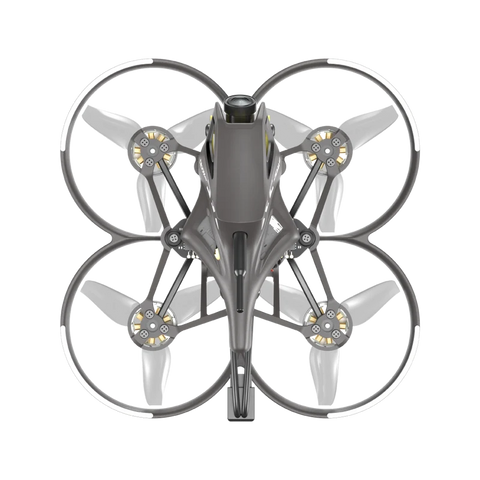

CADDX WalkSnail Curve Micro P18 HD Ascent Lite+ TinyWhoop FPV Drone ELRS
SPECS
- Name: Curve Micro P18
- VTX: Ascent Lite+
- FC: AXON 1S AIO V2.0
- ESC: 1S 12A
- Receiver: ELRS V3.5.0
- Motor: 1102
- Propeller: HQ 45mm 1.8X1.3X3
- Wheelbase: 68mm
- PWR Port: A30
- Flight Time: 8min
- Weight: 33g
- Processor: STM32G473
- Gyroscope: ICM42688 /BMI270
- Blackbox: 16M
- BEC: 5V3A
- FC Voltage: 1S
- FC Firmware: CADDXG473-2026.6
- ESC Current: 12A (Continuous);18A (Peak)
- ESC Firmware: A-X-5
- Tune Port: SH1.0-4P
- Motor Port: JST1.25-3P
- Charger: 6-Channel Charger
- FC Protocol: USB PD/BC1.2
- In Voltage: 5V-12V
- In Port: Type-C USB
- Bat Type: LiHV 4.35V
- Channel: 6
- Max Input Power: 30w
- Max.Charging Curr: 1A
- Dimension: 101.5*30*14.5mm
