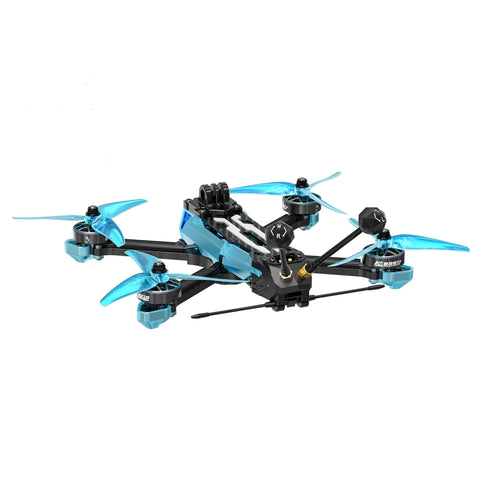

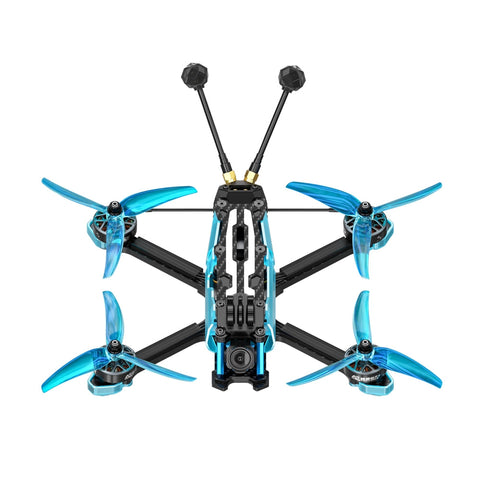

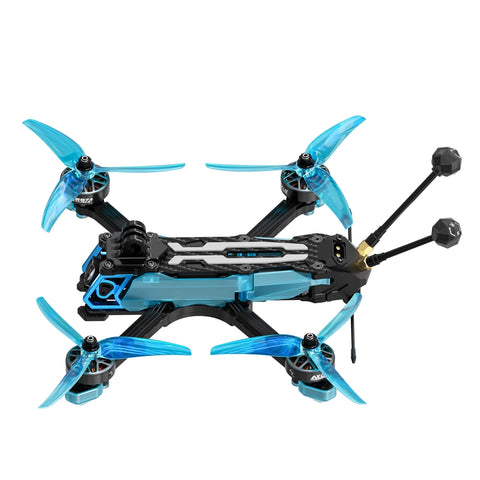

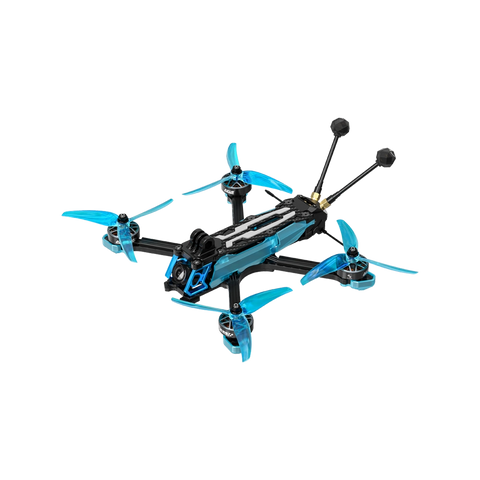

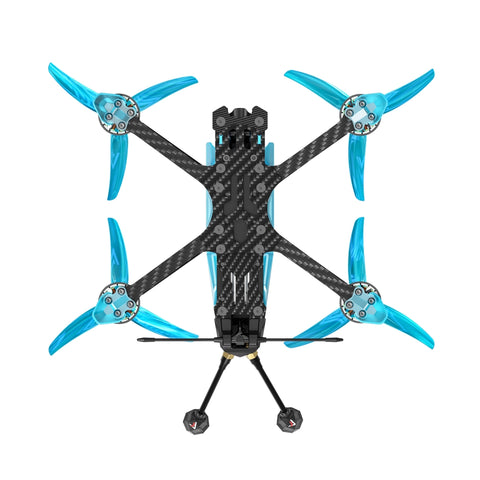

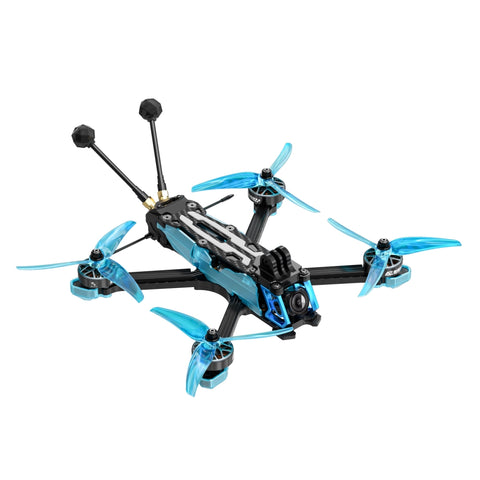

AXISFLYING Manta 5 SE V2 DJI O4 Lite 6S HD FreeStyle Racing FPV Drone GPS ELRS 2.4G (Single Gyro)
Axisflying focuses on user experience and carefully studies user sore points. In the field of freestyle, we continuously absorb user feedback and summarise product design experience. Axisflying combines CNC aluminum parts with high quality carbon plates to bring the MANTA series of freestyle frame with a unique and innovative design in the industry.
Feature
- MANTA 5" SE V2 frame is specially designed for 5-inch Freestyle and Cinematic, available in Squashed X / DC / Wide X versions.
- Adopts premium carbon fiber plate and injection‑molded protective parts for stronger structure, better durability and cleaner flight look.
- Factory pre‑tuned PID & filters, ready to fly with pure smooth flight feeling.
- Upgraded power system: 32‑bit ESC, high‑performance motors, strong and efficient.
- Fixed power lead design, more tidy and reliable; supports GPS position hold.
- Compatible with Analog VTX, DJI O4 Lite / O4 PRO HD system, free to match.
- Injection‑molded side guards and landing feet protect electronics and improve durability.
- Dual antenna supported, stable signal transmission for long‑range flight.
- Comprehensive upgrade from V1, stronger performance, better flying experience.
Recommended configuration
- Motor: Axisflying AE2207 V2 1960KV (Squashed X) / AE2505 1750KV (DC)
- Battery: 6S 1050–1550mAh LIHV/LiPo
- Props: BB39 / R29
- VTX: Axisflying Smurfs V2 5.8G 1.6W / DJI O4 Lite / O4 PRO
Specifications
- Name: Manta 5" SE V2
- Structure: Squashed X / DC / Wide X
- Wheelbase: 223mm / 226mm
- Arm thickness: 5.5mm–6mm
- Top plate thickness: 2mm
- Middle plate thickness: 3mm
- Bottom plate thickness: 3mm
- Carbon material: High‑strength carbon fiber
- Stack mounting: 30.5mm (M3)
- VTX mounting: Compatible with 20mm / 25.5mm / 30.5mm
- Lens space: Compatible with HD camera & 1200TVL analog camera
- Motor mounting: Standard 5‑inch motor mount
- Flight controller: F722
- Gyro: Single ICM‑42688P
- ESC: Argus ECO 60A 6S 32‑bit
- Input voltage: 4–6S
- Weight: 410g±10g – 479g±10g (depending on configuration)
- Flight time: 5–10 minutes
- Battery connector: XT60
