Matek mR24-30-TX mLRS MAVLink Module Kit 2.4GHz

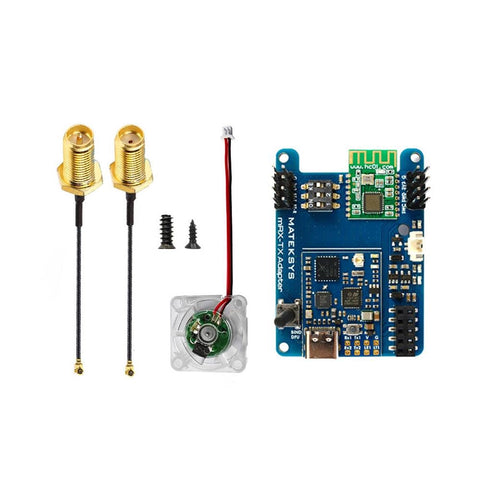

The MATEKSYS mLRS 2.4GHz TX Module Kit - mR24-30 TX offers reliable long-range communication, ideal for drone flights and remote control applications. It includes the mR24-30-TX module, IPEX MHF1 to SMA and RP-SMA adapter cables (5cm each), and a 5V fan (25×25×10mm) for stable operation. Customize your setup as needed.
Note: SMA antenna and 3D-printed case not included.
Features
- Reliable Long-Range Communication
- Adapter Cables Included
- mR24-30-TX Module
- Customizable Setup
- Cooling Fan
Specifications
mR24-30
- RF Power: 13dBm (min) / 20dBm / 24dBm / 27dBm / 30dBm (1000mW)
- Antenna Connector: IPEX MHF-1 to SMA/RP-SMA
- STM32G431KB: mLRS firmware
- RF Frequency: 2.4GHz ISM
- LoRa SX1281: TCXO
- PA/LNA: SKY68383-11
mRx-Tx ADAPTER
- Built-in: 5V fan controller, running if output power ≥ 500mW
- Power Supply: 5-13V DC @ JR_PIN3 (VIN)
- Red and Green LEDs: for mLRS status
- One button: DFU mode and Bind
- Built-in: HC-04 Bluetooth module
- Blue LED: Bluetooth status
- TX2: RC IN (CRSF)
Includes
- 1x MATEKSYS mLRS 2.4GHz TX Module Kit - mR24-30 TX
- 1x IPEX MHF1 to RP-SMA adapter cable (5cm)
- 1x IPEX MHF1 to SMA adapter cable (5cm)
- 1x 5V Fan (25×25×10mm)
- 1x Hardware Kit
