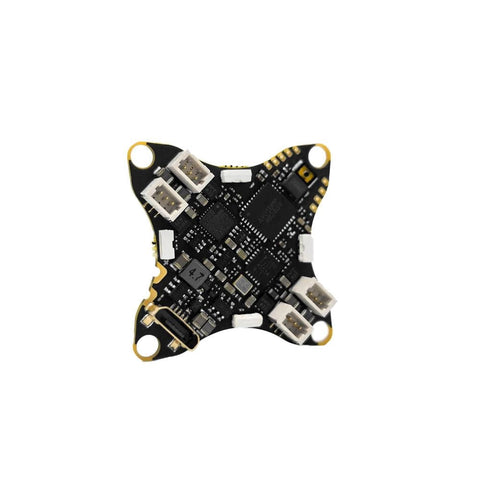

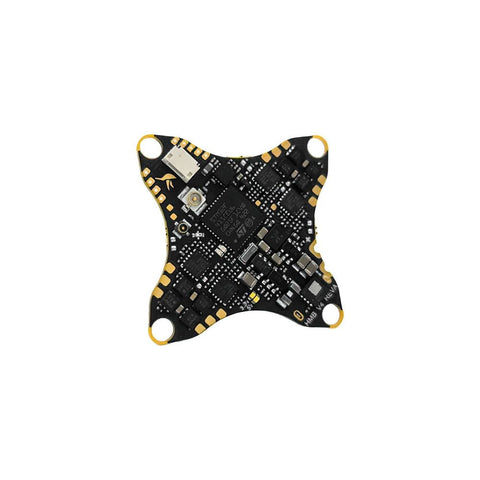

NewBeeDrone HummingBird V4 AIO 1S FC 400mw VTx ELRS 2.4 25x25mm
The NewBeeDrone HummingBird V4 AIO is a compact, high-performance 25x25mm flight controller built for micro racing and freestyle. It features an F4 processor, 12A 1S 4-in-1 BLHeli_S ESC, onboard ExpressLRS receiver, and a powerful 400mW VTX. With plug-and-play ease and factory tuning, it delivers smooth flights, low-latency control, and a strong video signal for both indoor and outdoor flying.
Features
- Factory-Tuned for Plug-And-Play Simplicity
- Integrated 12A 1S 4-in-1 BLHeli_S ESC
- Compact 25x25mm Mounting Pattern
- Built-In ExpressLRS 2.4GHz Receiver
- Powerful F4 Flight Controller
- All-In-One Design
- 400mW VTX
Specifications
- VTX: 25mw for Racing/ 100mw and up to 400mw SmartMax temperature control with BeeTX 5.8Ghz Antenna
- ESC: 12A BLHeliS pre-flashed with Bluejay 0.19.2 Target: O-H-10 48kHz
- Flight Controller Weight: 4.57g(Include antennas and battery connector)
- OSD: NBD7456 Graphical OSD compatible with Betaflight OSD
- Power Plug: Nectar Connector Gold Plated PH2.0 Solid Pin
- Flight Controller Size: Outer dimensions: 29x29x7.6mm
- Receiver: 2.4G Antenna with MHF3 connector
- Flight Controller Holes: 25.5x25.5mm
- ESC Connector: JST-1.0 3Pin
- Battery input: 1S Only
- MCU: STM32F411
- GYRO: BMI270
- Uart1: free
- Uart2: free
Includes
- 1x NewBeeDrone HummingBird V4 AIO - F4 FC + 12A 1S 4-in-1 BLHeliS ESC + ELRS RX + 400mW VTX - 25x25
- 1x Hardware Kit
