Sequre H743 V2 Mini FC Stack E70 G1 70A 4-8S ESC 20x20mm

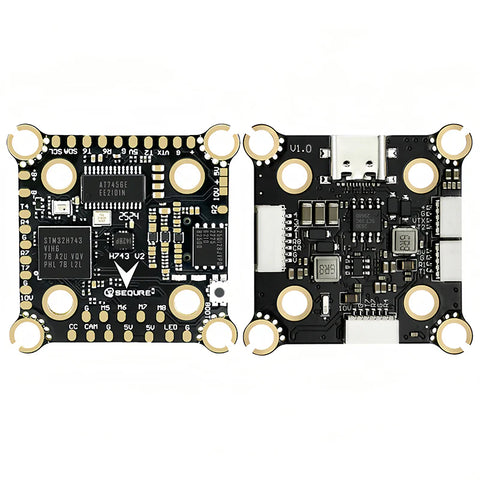

SEQURE H743 V2 FC
- Equipped with a high-performance STM32H743 processor, the operation frequency is up to 480MHz, offering rapid control response.
- Adopts ICM42688P gyroscope, this FC realizes precise gesture sensing and stable control, improving the reliability of the system.
- SEQURE H743 has an onboard barometer, OSD, and 16MB large capacity black box, which effectively records the flight data.
- Reserve 6 UARTS to meet the needs of most devices.
- It can control up to 8 motors, easily constructing X8.
- Equipped with a plug-in connector and dual BEC outputs, the FC provides independent 10V voltage,allowing the DJI O3 and analog VTX to plug in for use directly.
- Supports wide voltage input of 4-8S Lipo, mounting holes of 20mm and 30.5mm. Mini design, suitable for various types of racks like racing, aerial photography, freestyle, etc.
E70 G1 4IN1 ESC
- STM32G071 high-performance processor, using BLHeli_32 or AM32 firmware, 2-8S wide voltage input, single-channel continuous current 70A, peak current up to 150A.
- Built-in galvanometer, supports telemetry return, and updates motor speed, temperature, current and other data in real time.
- High-quality high-power MOSFET, ultra-high efficiency conversion, reducing losses and extending flight time.
- High copper thickness multi-layer PCB design increases over-current capability, efficient heat dissipation performance, and is not afraid of load pressure.
- Precise switch interval time control, speeding up the response speed of the ESC, smooth control, and delicate feel.
- PWM frequency supports 16KHz-128KHz, and excellent circuit design to solve the out-of-step problem.
- Innovative design, oblique surface soldering pad, motor wiring layout is more beautiful and safe, while reducing welding difficulty.
- 20*20mm installation hole spacing design, compact structure, adaptable to various types of racks, easy to install.
Parameters of Product:
|
Processor |
STM32H743 |
|
Gyroscope |
ICM-42688-P |
|
Barometer |
BMP280 |
|
OSD Chip |
AT7456E |
|
Black Box |
16MB |
|
Firmware |
SEQUREH7V2 |
|
Input Voltage |
4-8S Lipo |
|
BEC Output |
5V/2.5A，10V/2A |
|
UARTS |
6 |
|
Control Motor |
M1-M8 |
|
LED |
WS2812 LED Strip |
|
Buzzer |
Support |
|
ESC Telemetry |
RX8 |
|
USB |
Type-C |
|
Installation Hole Distance |
20x20mm,Φ4mm/M3 | 30.5x30.5mm,Φ4mm/M3 |
|
Product Size |
36.5*36.5*6mm |
|
Product Weight |
7.3g |
|
Product Name |
E70 G1 |
|
Processor
|
STM32G071 |
|
PWM Frequency
|
16KHz-128KHz |
|
Working Voltage
|
2-8S Lipo |
|
Continuous Current
|
70A |
|
Peak Current
|
150A |
|
Support Protocol
|
Dshot600/300/150,Oneshot,Multishot,PWM |
|
Firmware Version
|
BLHeli_32，AM32 |
|
Telemetry Return
|
Support |
|
Galvanometer
|
YES |
|
BEC |
NO |
|
Mounting Hole Spacing
|
20x20mm, Φ4mm/M3 |
|
Product Size
|
50.5*36*6mm |
|
Product Weight
|
15.8g |
Package included:
- SEQURE H743 V2 FC x 1
- E70 G1 4IN1 ESC × 1
- 30AWG 40mm Reverse Double Headed SH1.0-8P Flat Cable x 1
- 30AWG 100mm Single-head SH1.0-4P Flat Cable x 2
- 60mm Length 12095 5V Buzzer x 1
- M3*8mm Silicone Shock-absorbing Washer(Black) x 10
- 12AWG 100mm Power Cable (black/red) × 2
- XT60H-M Black Male Connector × 1
- 35V 680UF Solid Capacitor × 1
- M3*25mm Screw × 4
- M3 Sleeve Nut × 4
